RTD PT100

RTD Dual element WZPK2-140GL

RTD Dual element WZPK2-140GL

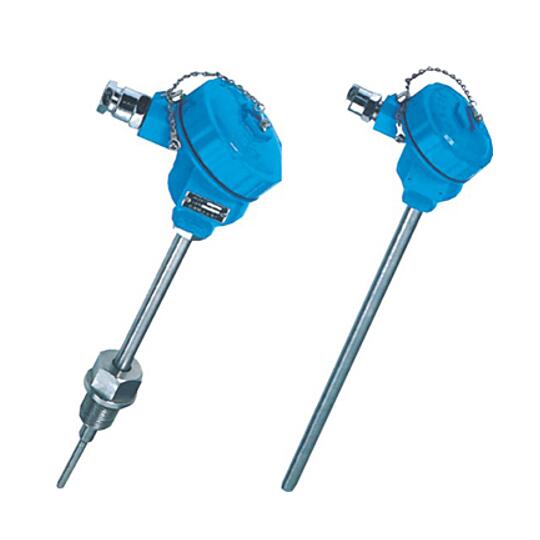

Product description: TianKang skin temperature measurement Resistance Temperature detector RTD Dual element WZPK2-140GL is explosion-proof armored thermal resistance, suitable for the site environment is relatively narro
INQUIRY

TianKang skin temperature measurement Resistance Temperature detector RTD Dual element WZPK2-140GL is explosion-proof armored thermal resistance, suitable for the site environment is relatively narrow place to use, RTD pt100 temperature response fast, explosion-proof junction box, suitable for the site has explosion-proof requirements, Resistance Temperature detector(RTD) for heat tracing system (skin temperature measurement), type PT100, Dual element. Model: WZPK2-140GL, working temperature -200 to 450 deg C.

RTD Dual element WZPK2-140GL Characteristics

Less thermal response time, which can reduce the dynamic error;

Small diameter, so the length is not limited;

High measurement accuracy;

Imported thin-film resistor with reliable and stable performance;

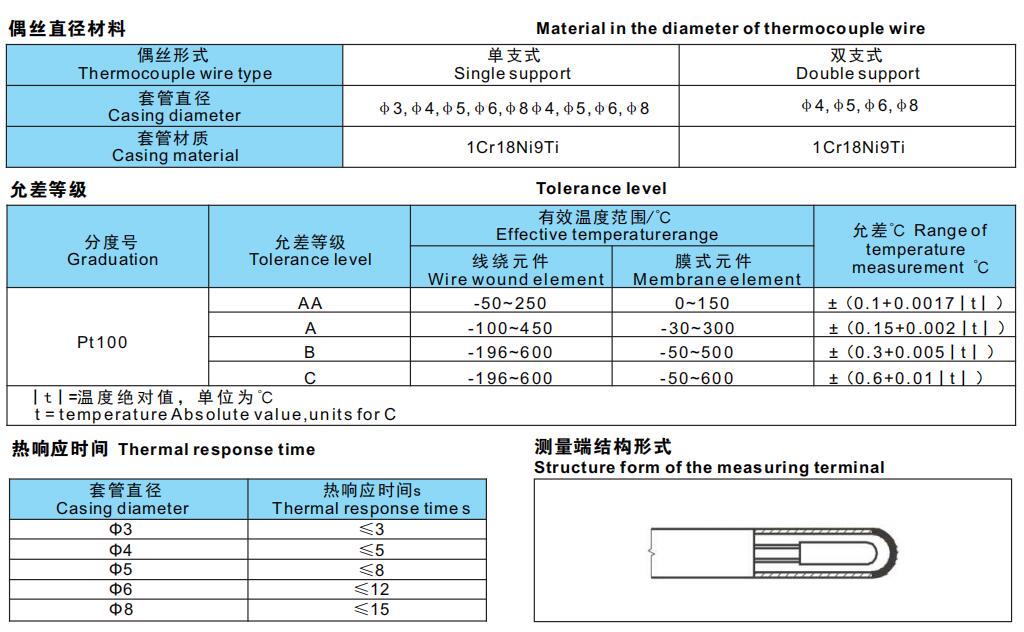

RTD Dual element WZPK2-140GL Main technical parameters

Product implementation standard:IEC60751,GB/T30121-2013.

RTD Dual element WZPK2-140GL operational performance

We are a professional manufacturer of temperature, pressure, flow and level instruments in China. We specialize in customized temperature instruments. If you have special requirements or drawing requirements, please contact us.
