Bimetallic Thermometer

AnHui TianKang (Group)Shares Co.,Ltd Explosion proof electric contact bimetallic thermometer

Electric contact bimetal thermometer
bimetal thermometer

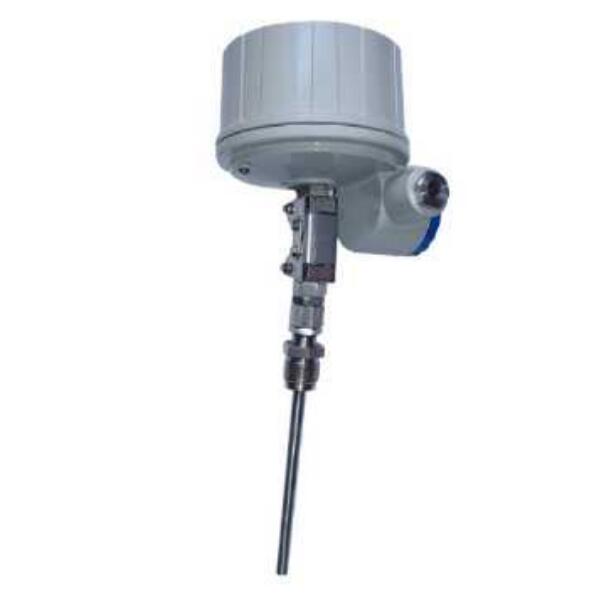

Explosion proof electric contact bimetallic thermometer
Product description: AnHui TianKang (Group)Shares Co.,Ltd Explosion proof electric contact bimetallic thermometer is able to directly measure the temperature of liquid, steam and gas and solid surface in the production fi
INQUIRY

AnHui TianKang (Group)Shares Co.,Ltd Explosion proof electric contact bimetallic thermometer is able to directly measure the temperature of liquid, steam and gas and solid surface in the production field where there are explosives such as hydrocarbons within the range of -80℃~+500℃.

Main technical parameters

Main technical parameters

Nominal diameter of dial：100

Thermal response time：≤40s

Explosion proof grade：dⅡBT4

Rated power：10VA

Maximum operating voltage：220V

Maximum operating current：0.7A

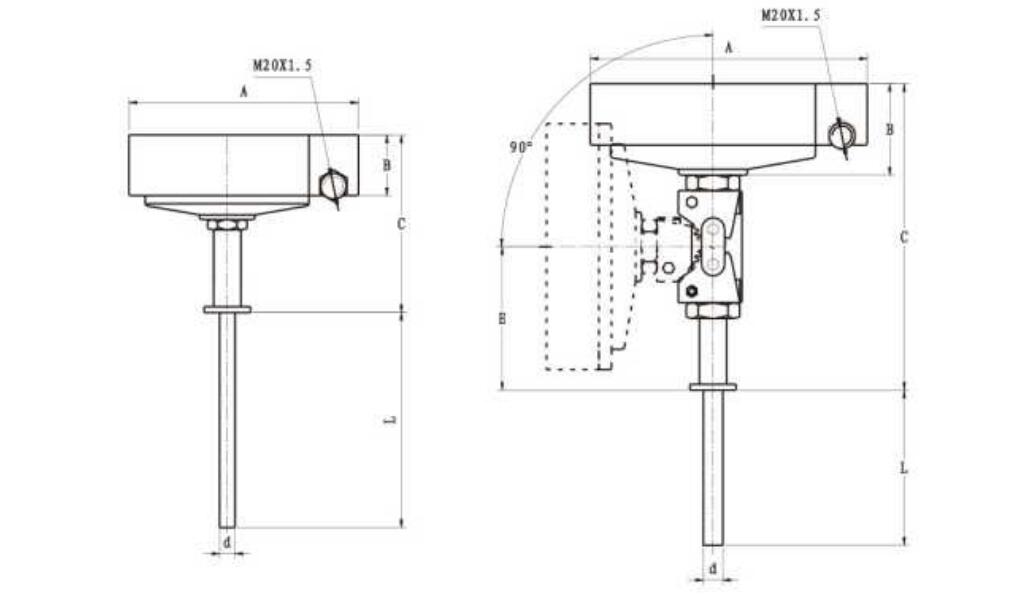

Shape and dimension

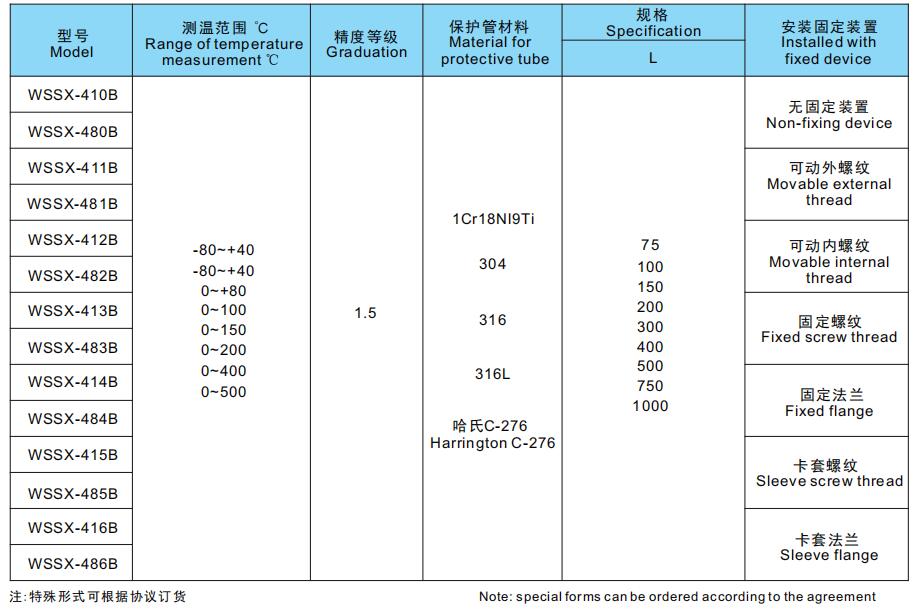

Model and specifications

AnHui TianKang (Group)Shares Co.,Ltd Explosion proof electric contact bimetallic thermometer Notice for model selection

1) Model

2) Precision grade

3) Range of temperature measurement

4) Position regulation of electric contact points

5) Installation and fixation form

6) Insertion length

type, the upper and lower limitations of the position can be regulated, temperature measurement range 0~400℃, protective tube 316, insertion length 300mm. WSSX-481BM 0~400℃ 1=300,protective tube protective tube.
